Plenty of different-sized climatic chambers to meet the various testing requirements.
Supports a maximum of 150 °C and a minimum of -60 °C.

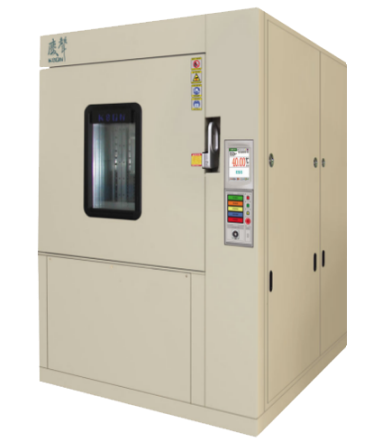

Typical Ranges of Temperature & Humidity Test:
Operating Temperature: -40 to 85 °C
Storage Temperature: -45 to 90 °C
Humidity: 0% to 95%
Temperature Changing Rate: 1–20 °C/min

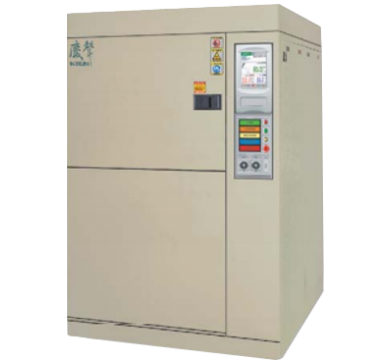

Environmental Reliability – Thermal Shock
IEC 60068/ISO 16750 compliant.

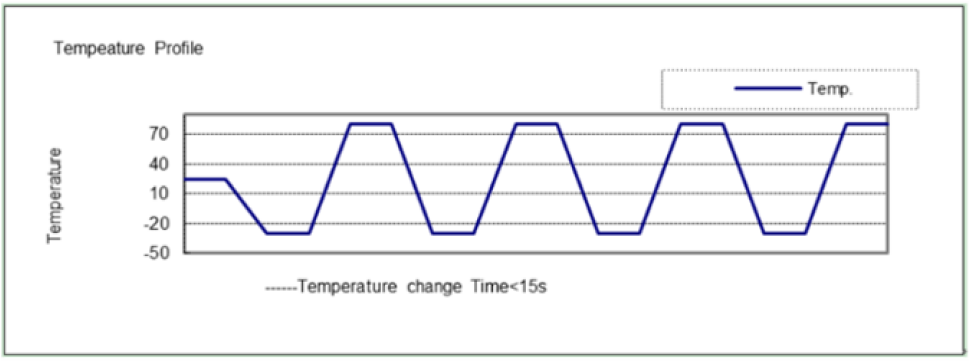

This is an accelerated test for reliability evaluation of mechanical parts and soldering strength by changing the temperature in sharp ramp from a high temperature to a low temperature or vice versa. For example, the operating/storage temperature of DUT will change from +90 °C to -45 °C in a few seconds.
By repeating thermal shocks, defects in the mechanical design, material strength or soldering quality will be identified。

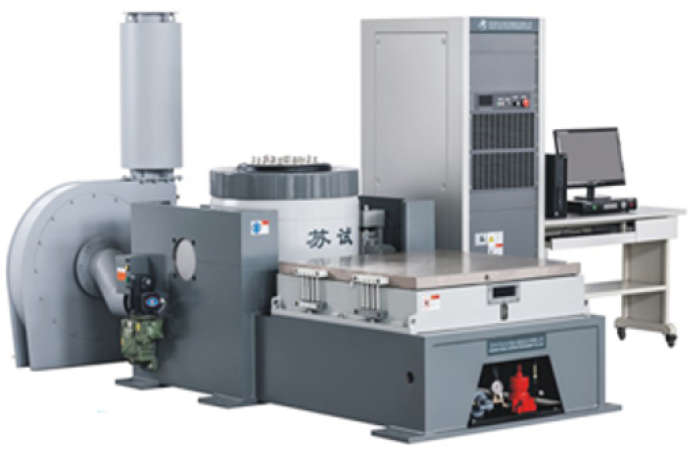

Mechanical Reliability – Vibration Test
IEC 60068 compliant.
This is a standard test applicable to various products. By simulating different vibration conditions, the ability of the products to withstand vibrations during transportation, installation or use can be evaluated.
